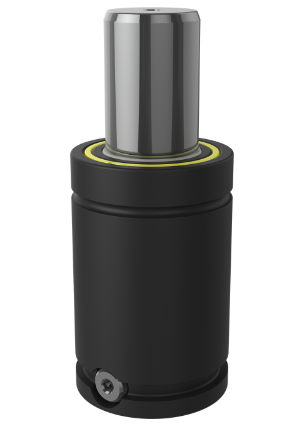

XG4200

KALLER GAS SPRING

The Power Line Series includes our shortest and most powerful Piston Rod Sealed gas springs, offering impressive force in a very compact format.

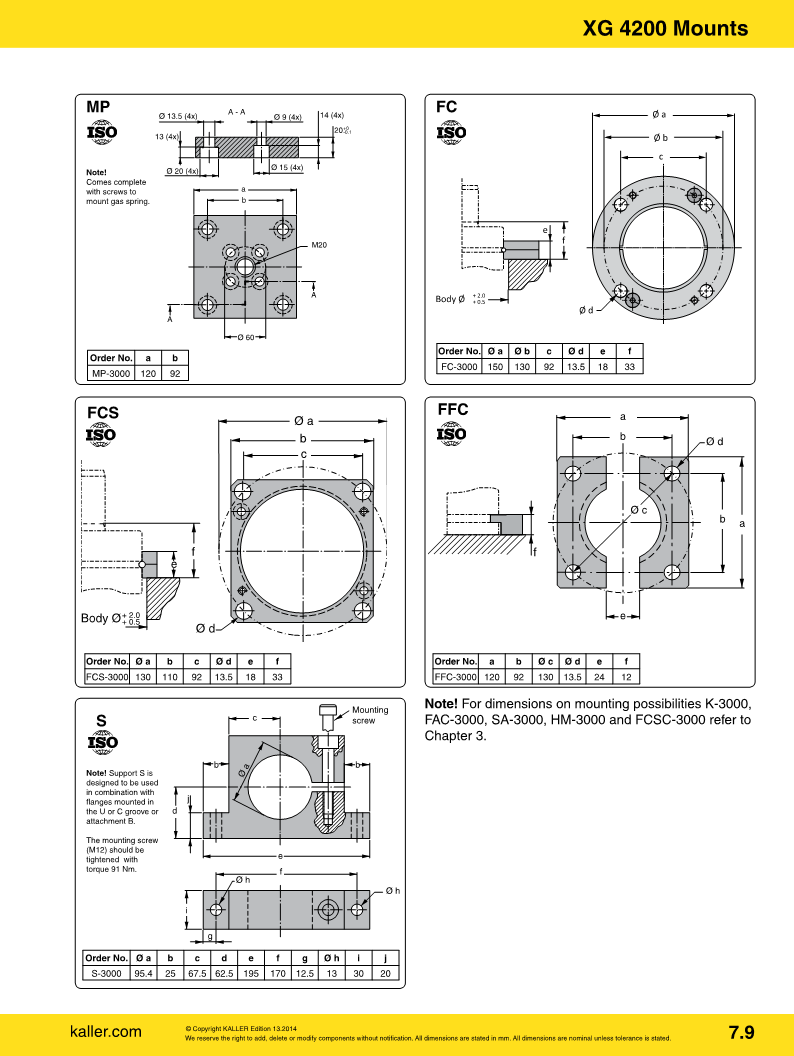

These gas springs are available with forces from 3,500 N up to 66,000 N and stroke lengths between 10 and 125 mm.There is a side port for gas charging that can also be used to connect to a hose system.An upper C-groove and a lower U-groove together with threaded holes allow various mounting possibilities using our standard mounts.
Product Catalog Download(Eng/Kor) Download(ENG)

Based on the X series with the same features but additional total length providing a larger G1/8” charge port and deeper bottom threads.
• Force: 3,600-66,300 N (810-14,905 lbf)
• Cylinder Diameter: 32-120 mm (1.26-4.72 in)
• Stroke Length: 10-125 mm (0.39-4.92 in)
